Pressure Cooker (Unsaturated Type) HAST
For humidity resistance test of electronic parts
For IEC 68-2-66 DAMP HEAT, STEADY. STATE (UNSATURATED PRESSURIZED VAPOUR) For JEITA ED-4701
■Feature
This equipment can change temperature and humidity without restraint.
It provides numerous data of acceleration factor in the field and is most widely used for bias test of all kinds of parts which demand guarantee of humidity resistance and heat resistance, as well as for humidity resistance test of materials. Various jigs are available for bias tests.
Wide range of products, from small pressure vessels to high pressure vessels, can be offered.
Clutch ring lid locking mechanism of pressure vessel allows safe and sure opening-and-closing of lid. Types HV-85 and above are equipped with automatic lid opening-and-closing mechanism.
■Specification
Unsaturated type Humidity control range 100 – 65%RH
| Type | Pressure MPa(G) (kg/cm2(G)) |
Temperaturedegrees C | Chamber inside dimension mm |
|---|---|---|---|
| HV-15 | 0～0.5 (0～5) | 100～175.8 | φ240×540 |
| HV-24 | 0～0.4 (0～4) | 100～168.3 | φ300×480 |
| HV-34 | 0～0.4 (0～4) | 100～168.3 | φ360×400 |
| HV-42 | 0～0.2 (0～2) | 100～148.5 | φ420×540 |
| HV-52 | 0～0.2 (0～2) | 100～148.5 | φ500×370 |
| HV-85 | 0～0.5 (0～5) High Pressure vessel |
100～175.8 | φ850×700 |
| HV-115 | 0～0.5 (0～5) High Pressure vessel |
100～175.8 | φ1100×1200 |
| HV-135 | 0～0.5 (0～5) High Pressure vessel |
100～175.8 | φ1300×1500 |
| HV-155 | 0～0.5 (0～5) High Pressure vessel |
100～175.8 | φ1500×2000 |

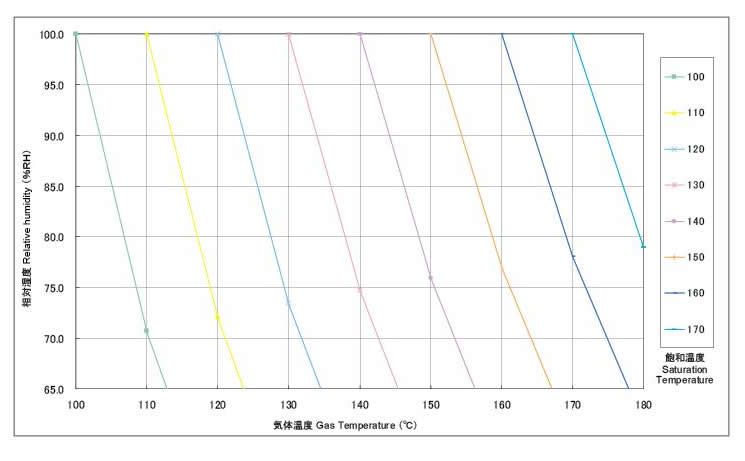

■Humidity Range of Pressure Cooker (Unsaturated Type) HAST
※Click this Graph!
